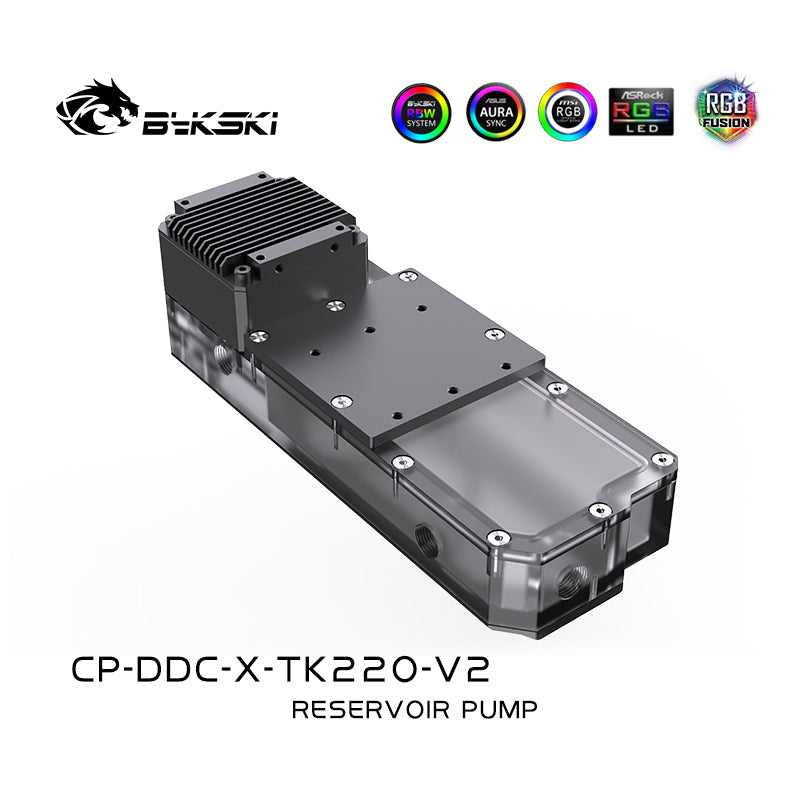

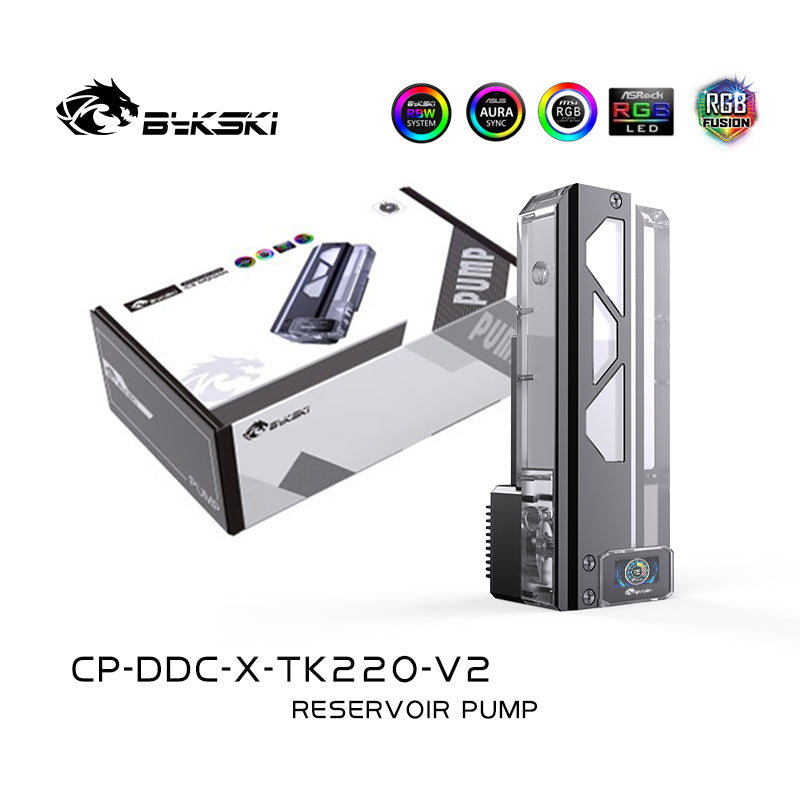

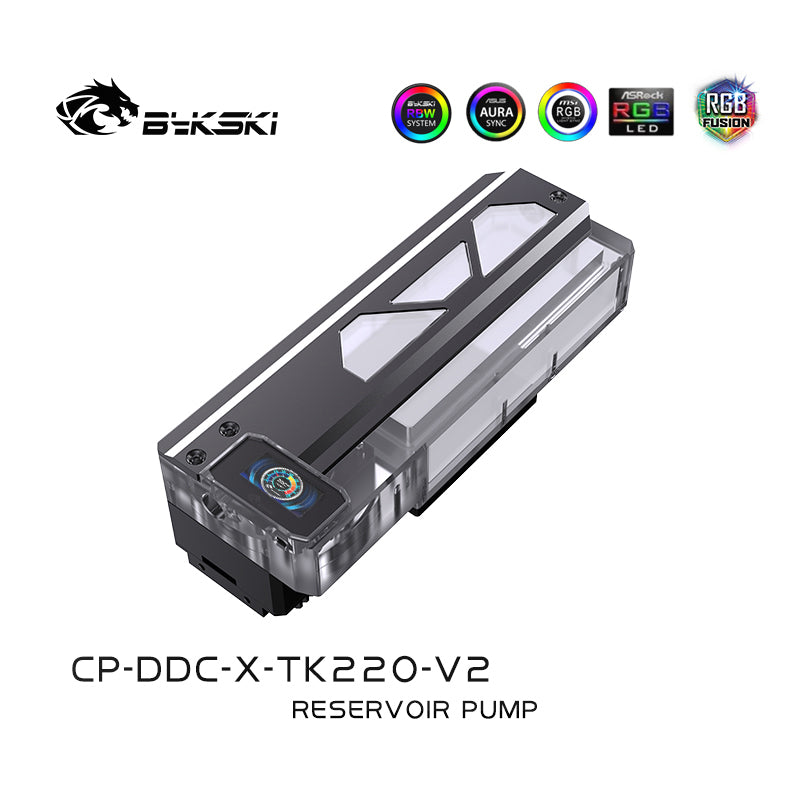

This latest version of the Bykski DDC Pump Station Kit delivers power, versatility, and a real-time temperature display. The transparent PMMA body highlights the fluid you use. Aluminum cover plates and pump armor give the reservoir a distinctive look and design. Located at the bottom right of the station is a temperature gauge that provides real-time temperature readings. The included powerful DDC pump powers the station, ensuring excellent flow throughout your loop. Multiple mounting options are available, including a 120mm mounting bracket (B-BKT-105) and DIY elbow brackets.

Features

• Low Vibration / Quiet Operation

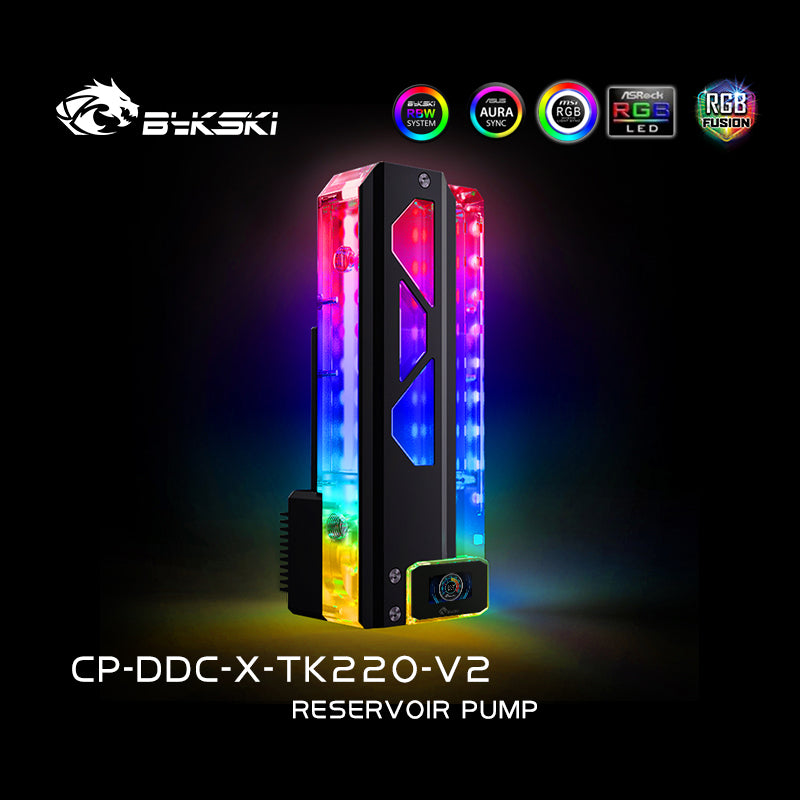

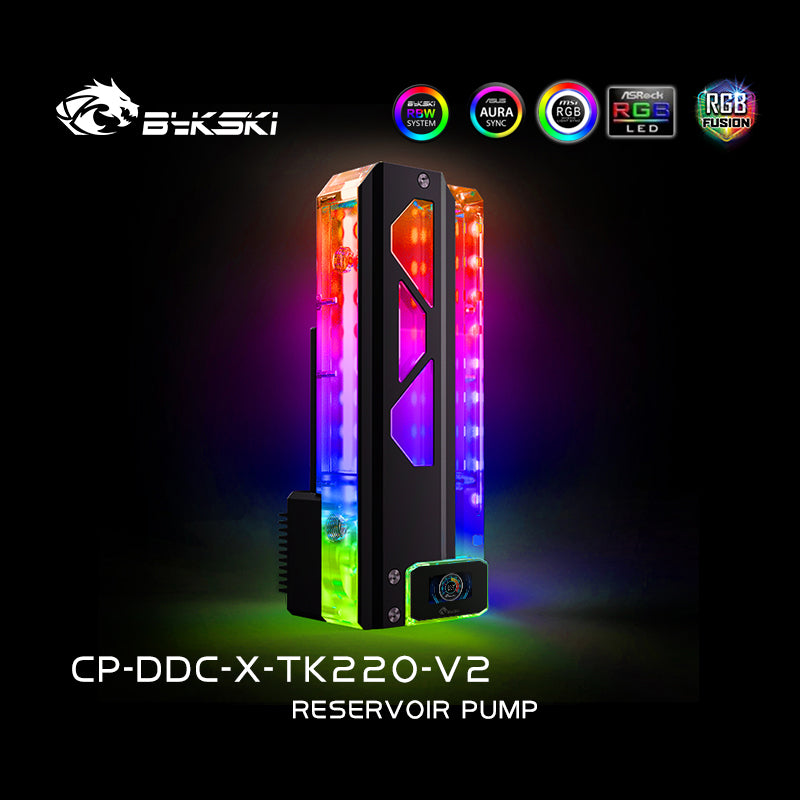

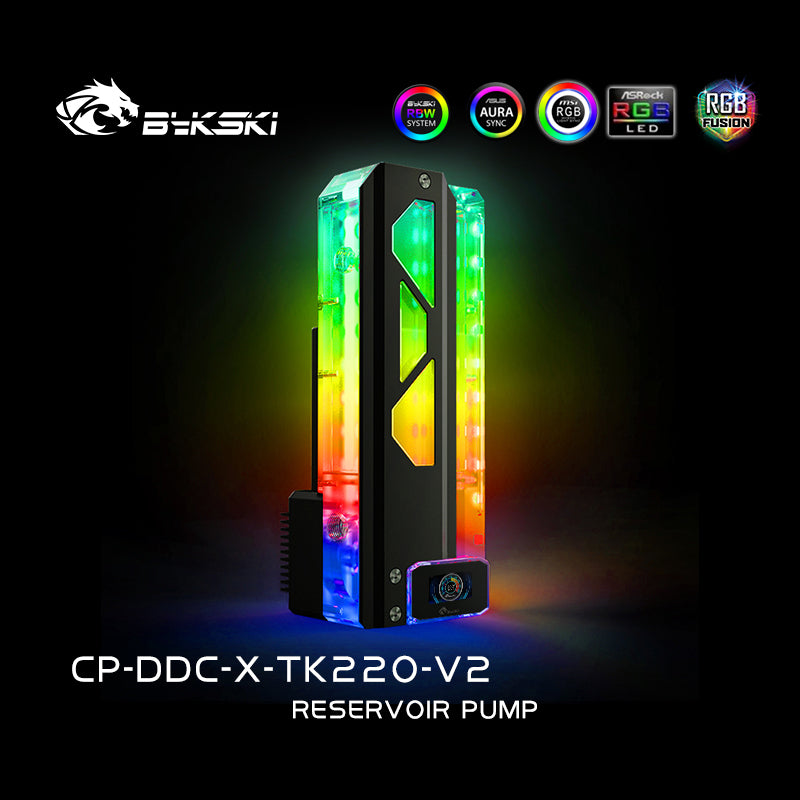

• Ultra Bright 5V A-RGB Integrated LEDs
• Digital Temperature Readout

Specifications

• Material: Acrylic / Black Anodized Aluminum (not in contact with coolant)

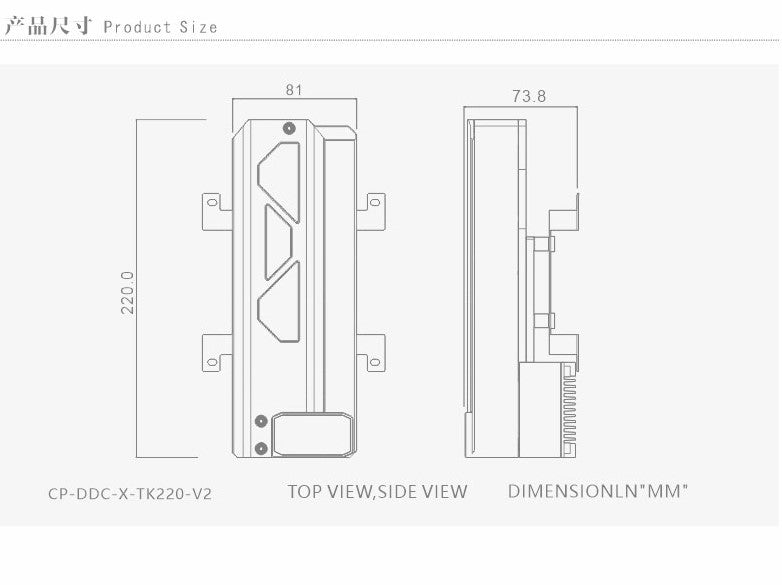

• Dimensions: 220mm(H) x 81mm(W) x 73.8mm(D)

• Thread: G 1/4in.

• Inlets: 3

• Outlets: 1

• Pump Specifications: CP-PMD3COV-X with heatsink

  Max RPM: 5000
  Temperature: 45°C @ 4000RPM
  Power: 12V (TDP15W)
  Power Connector: 4-Pin PWM
  Voltage Consumption: DC12V, TDP 15W
  Voltage Range: 10-15V
  Flow Rate: 600L/H
  Output Head: 6 Meters
  Connector: 4-Pin Molex and 4-Pin Fan (Tach+PWM only)
  MTBF: 50,000 Hours

Compatibility

• Mount Type: 120mm Mount Bracket or Customised

Included Parts

• 1x 220mm Reservoir Station
• 1x DDC Pump with Heatsink (installed)
• 1x B-BKT-105 Bracket
• 2x Elbow Bracket
